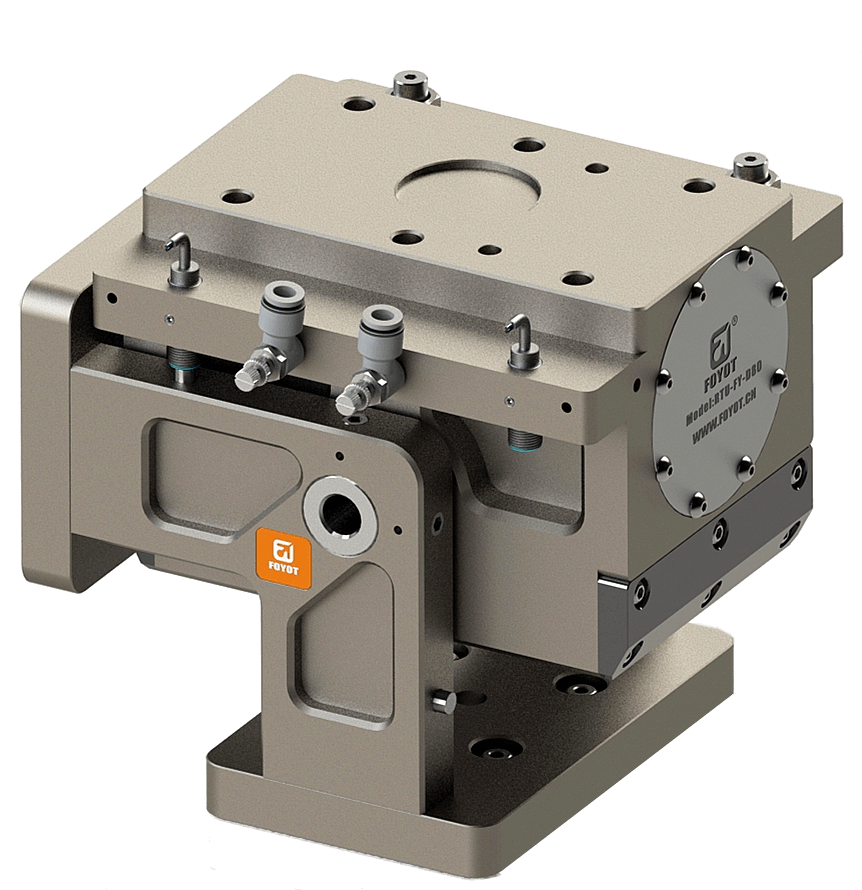

Name：Rotating head with 90 degree swing

Name：FY-SW-6.1N.m

DRIVE CYLINDER AREA:1052mm^2

ACTUAL TORQUE:0.4~0.8MPa

4.85N.m~9.7N.m

WEIGHT:1.45kg

TURNING TIME:0.05~0.1SEC

ROTATION FITTING SIZE:M5

REPETITION ACCURACY:±0.05°

OPERATION PRESSURE:0.4~0.8MPa

AMBIENT TEMPERATURE:-5~60℃

ROTATION ANGLE:90°

Note: close to opening due to the market brand and position difference is too much, the company does not provide, users can choose different products according to their own needs, if you need to provide, please contact F0Y0T company, www.huawantruss.com
